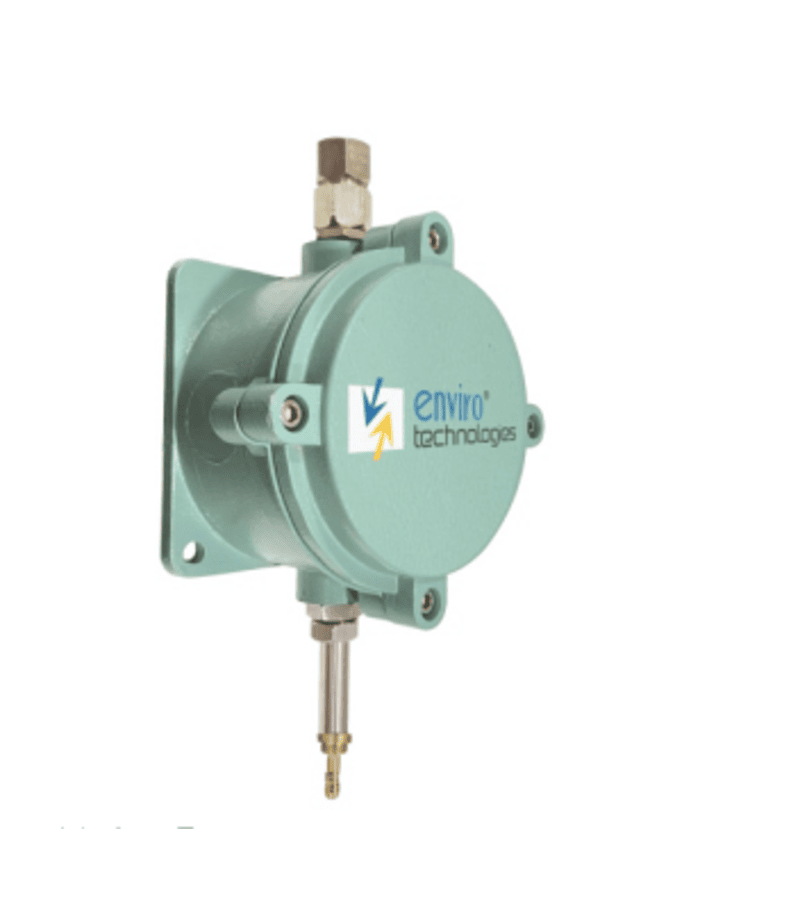

Differential Pressure Switch
APPLICATION
- Monitoring air filters and ventilators
- Monitoring industrial cooling-air circuits
- Overheating protection for fan heaters
- Monitoring flows in ventilation ducts
- Controlling air and fire-protection dampers
- Frost protection for heat exchanges
CE Certified
BIS Certified
Make in India
Description
- Microcontroller based.
- RH, Temperature & DP measurement.
- 3.5-inch color LCD/TFT display.
- Software programmable channel ranges, units & input types.
- User programmable for 1, 2, or 3-channel measurement.
- Real-Time Clock with battery backup.
- Software calibration for channels.
- RS485 Communication with MODBUS / TCP multidrop protocol for PLC, SCADA, etc.
- 24 VDC, 1 AMP Power Supply.
- FDA 21 CFR Part 11 Compliance EMS software.
- Advanced digital RH+T sensor technology.
Technical Information
|
Parameter |
Description |
|---|---|
|
Enclosure Rating |
Diecast Aluminium Alloy LM6 |
|
Mounting |
2 each 4.3 mm screw hole one slotted |
|
Medium |
|
|
Range |
Dry Air or non-aggressive gases |
|
Operating Temperature |
-20°C - 60°C |
|
Storage Temperature |
-20°C - 85°C |
|
Humidity |
0 to 95% RH, non condensing |
|
Protection Standards |
IP 54 |
|
Input |
24 - 250V AC |
|
Dimensions (L X W X H) |
105 mm x 73 mm x 63 mm |
|
Weight |
150g |
