enviFLAC
Fork Lift Access Control

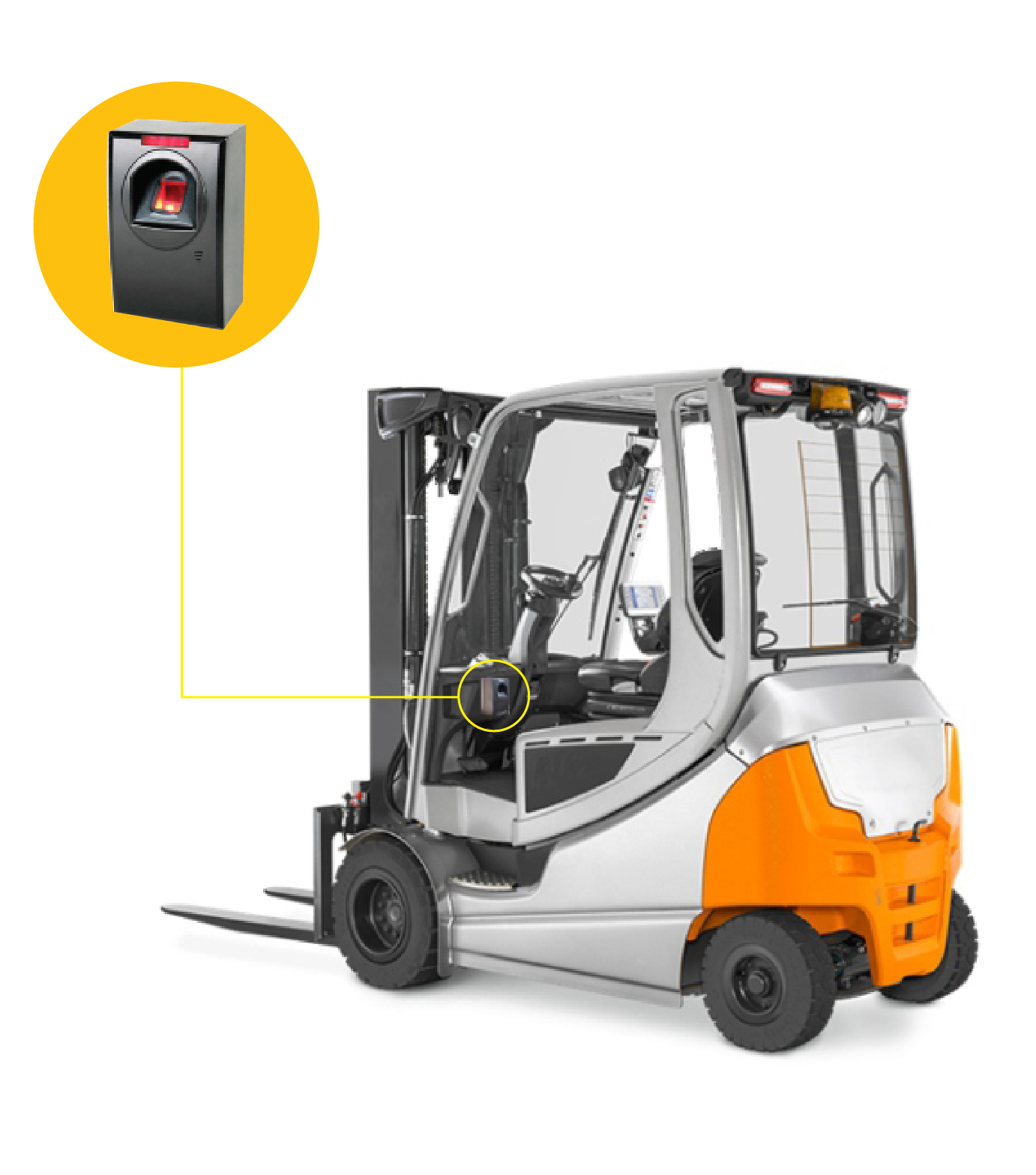

An elegant and compact fingerprint reader specially designed for access control system. An independent fingerprint module allows you to manage the access to the forklift for selected drivers. The device is very simple to use – the finger needs to be placed on the sensor, which will allow the user to turn on the vehicle
CE Certified
BIS Certified
Make in India
- Safety – Minimizes risk associated with use by unauthorized users
- Convenience – Compact size makes it easy to install
- Flexibility – Simple & Quick way of adding & removing users
- Savings – Reduces operational costs and increase safety
|
Parameter |
Description |
|---|---|
|
Templates |
9500 |
|
Operation Modes |
(1:N) – Fingerprint/(1:1) Fingerprint |
|
Scanner (Sensor) |
High Quality Optical Sensor |
|
Communications |
External Handheld Keypad for Programming & Finger Enrolment |
|
Storage |
1000 |
|
Template Upload |
Software Application (smartACCESS) |
|
Baud Rate |
9600 bps (default) |
|
LED/Buzzer |
Bi-color LED Bar/Multi Tone Buzzer O/p |
|
Power Supply |
12v DC from Controller |
|
Operating Temperature |
0°C to 50°C |
|
Humidity |
20% to 90% |
|
Color/Weight |
Jet Black/300 gms |
|
Dimension (L x H x D) mm |
76 x 124 x 50 |
|
CPU |
400 MHZ DSP |
|
Resolution (dpi) |
500+ |
|
Image Size (pixels) |
280 x 320 |
|
Sensing Area (mm) |
16.0 X 19.0 |
|
Authentication / Identification |
1:1 & 1:N (User Groups facility for faster verification) |
|
Template Size |
384 bytes (reducible to 256 bytes) |
|
Template Upload/ Download from PC |
Yes |
|
Enrolment Time |
2 sec |
|
Verification Time |
1 sec |
|
Identification Time: 1000 |
< 1 sec |
|
FAR |
0.00% |
|
FRR |
0.10% |
