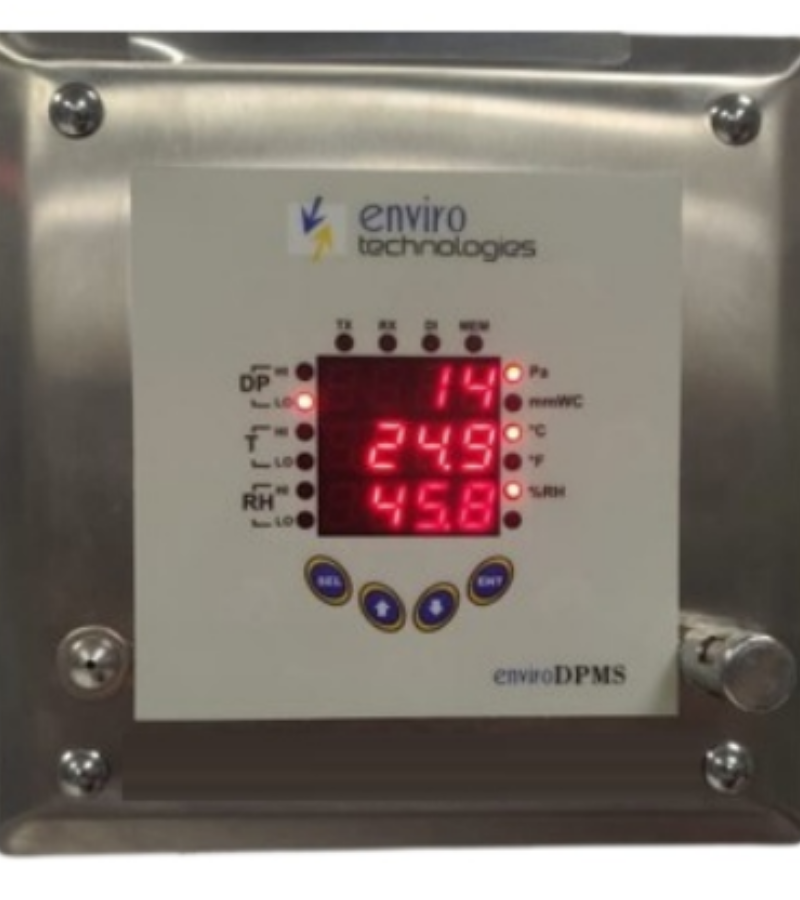

enviroDPMS-LED-2 - Image 1
Click to enlarge

    enviroDPMS-LED-2

    RH+T+DP CLEAN ROOM MONITOR

    Assists in GMP and Data Integrity in multiple pharma clean rooms







    Download Brochure
    Enquire Now

    CE Certified

    BIS Certified

    Make in India logo

    Make in India

    Description
    • Microcontroller based.
    • RH, Temperature & DP measurement.
    • Seven Segment 4 digit display
    • Software Programmable channel ranges, unit & input types
    • User programmable for 1,2 or 3 channel measurement
    • Real time clock with battery back-up with internal RTC
    • Rs485 MODBUS Communication for PLC, SCADA etc
    • FDA 21 CFR Part 11Compliance EMS software
    • Advance digital RH+T sensor technology
    • Door Status & AHU Status Optional
    Technical Information

    Parameter

    Description

    Display

    Seven Segment 4 Digit Display.

    Row1: Menu/Parameter.  Row2: Process Value

    LED indication

    Alarm: High/Low, Memory Full Alarm & Digital Input

    Unit’s Parameter (Pascal/mm WC, °C/°F, % RH)

    Transaction Capacity

    10000 (As per model)

    Number of Channels

    Three

    Channel Types

    Differential Pressure 2. Temperature 3. Relative Humidity

    Sensor Types
    1. DP (Internal Sensor)
    2. Temperature & Humidity (Internal Sensor)
    3. Temperature Sensor External: PT100, 4-20 mA, 0 to 1V (Factory Settable)
    4. Humidity Sensor External: 0 to 1V, 0 to 3.3V, 4-20 mA (Factory Settable)

    Input Range
    1. DP: (0 to 100mm WC) (Inbuilt)
    2. Temperature: PT-100 (90°C to 390°C)
    3. Relative Humidity: (0 to 100% RH)
    4. Digital Temperature: 0-100°C
    5. Digital Humidity: 0-100%RH

    Channel Resolution
    1. DP: 0.1mm WC
    2. PT100: 0.1°C
    3. Relative Humidity: 2% RH
    4. Digital Temperature: ± 0.3°C 5. Digital Humidity: ± 2.0% RH

    Accuracy
    1. DP: 1.5% Full Scale
    2. PT100: 0.5°C
    3. RH: 2% (Depending on Sensor)
    4. Temperature: ±0.3°C
    5. Humidity: ± 2.0% RH

    Communication Port

    2 Nos RS485 (1st RS485 for PC Comm./MODBUS & 2nd for External Display)

    Alarm Output

    External Potential Free relay output for external

    Hooter/Buzzer

    Event

    Door Open/Close Status Optional
