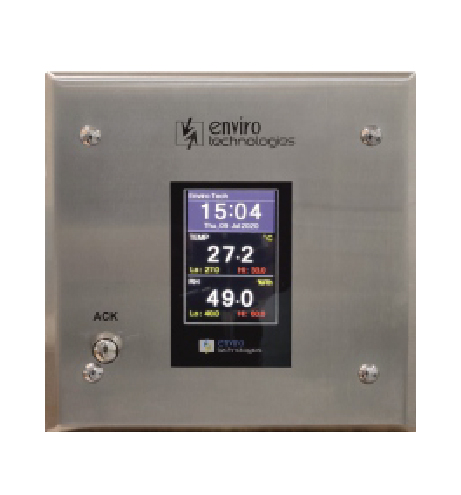

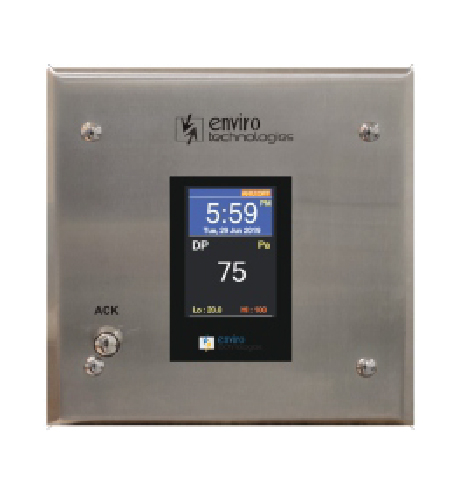

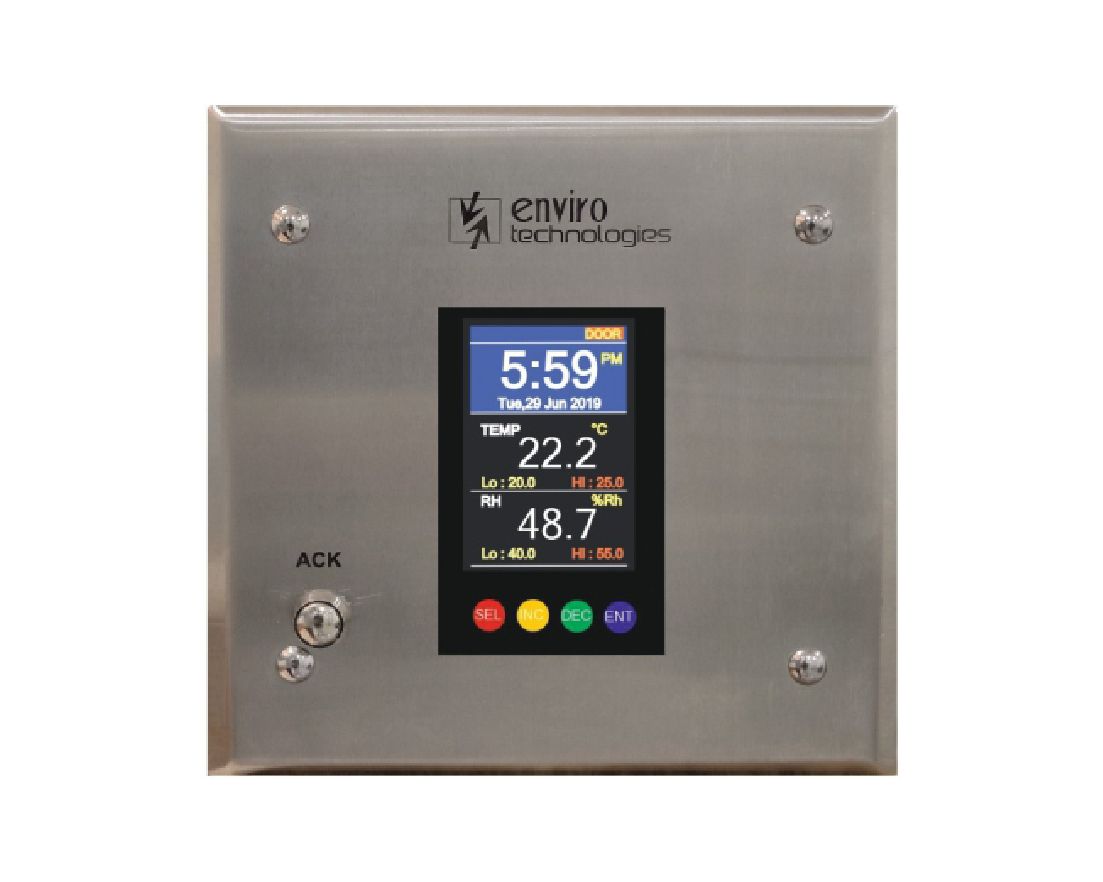

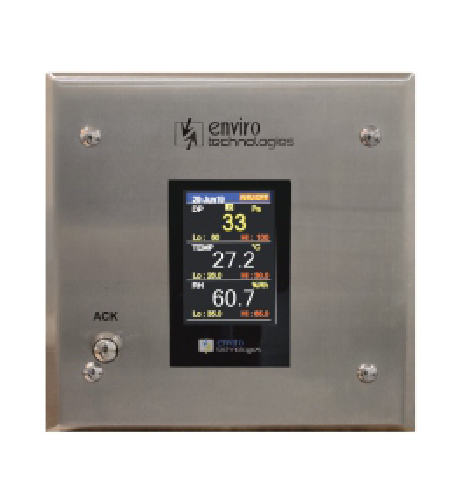

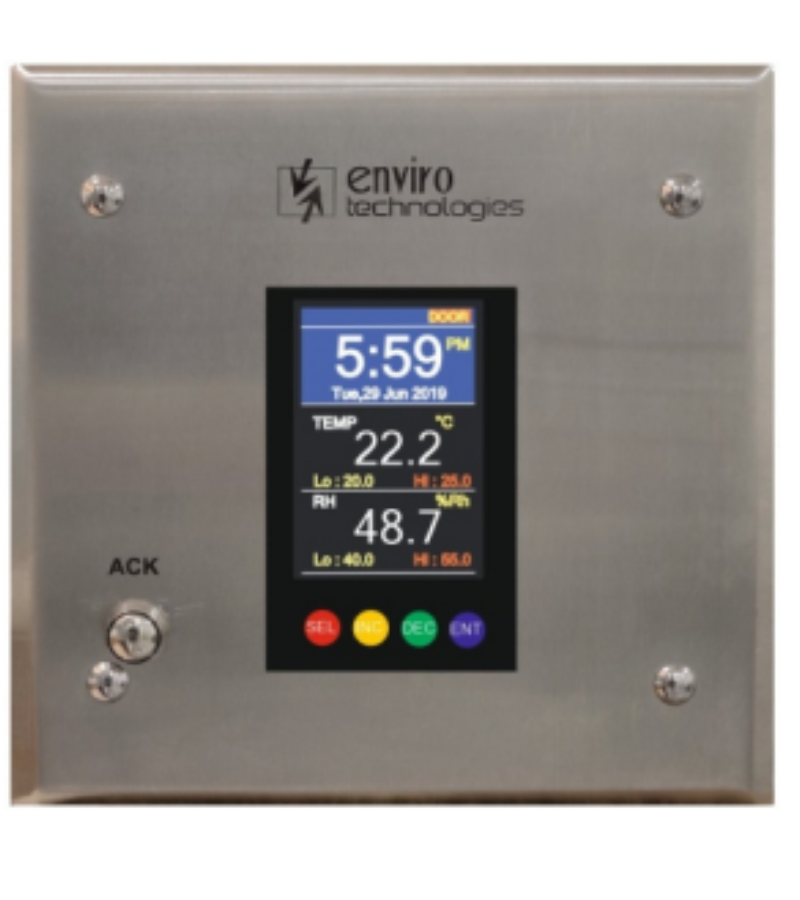

    enviroDPMS mini

    Temp + RH + DP Clean Room Monitoring

    Assists in GMP and Data Integrity in multiple pharma clean rooms.







    Download Brochure
    Enquire Now

    CE Certified

    BIS Certified

    Make in India logo

    Make in India

    Description
    • Microcontroller based.
    • RH, Temperature & DP measurement
    • 3 Channel Analogue I/P ( 4-20 mA / 0-10 V )
    • 1 Channel Analogue I/P
    • Real time clock with battery back-up with in-built RTC
    • MODBUS/communication for PLC, SCADA, etc.
    • 24 VDC, 1 AMP Power Supply
    • FDA 21 CFR Part 11 Compliance EMS software
    • 24 VDC, 1 AMP Power Supply.
    • Advance digital RH+T sensor technology
    Technical Information

    Parameter

    Description

    Application

    Clean Room Monitoring

    Channel Type
    1. Temperature
    2. Relative Humidity
    3. Differential Pressure

    Sensor Type
    1. DP (Internal Sensor)
    2. Temperature & Humidity (Internal Sensor)

    Range
    1. Temp Range – 0°C ~ 100°C (user selectable)
    2. Humidity - 0~100% RH
    3. DP Range - -250 ~ 900Pa; -25 ~ 90 mmWC (user selectable)

    Accuracy
    1. Temp ± 0.2 °C or ± 0.3 °C
    2. Humidity ± 1.8% RH ± 2% RH or ± 2% RH
    3. DP ± 1.5% of reading ± 5 Pa; ± 1.5% of reading ± 0.5 mmWC

    Resolution

    0.1 For RH & T
    0.1 For DP unit mmWC
    1 For DP unit Pa

    Analog Input

    4-20mA (factory settable) ( Temp + Rh + DP) 0-10V (factory settable) ( Temp + Rh + DP)

    Digital Input

    1Nos (Ack. or Door status or AHU Status Congurable
