enviSENSE Differential pressure transmitters
RH+T+DP
Assists in GMP and Data Integrity in multiple pharma clean rooms.
CE Certified
BIS Certified
Make in India
- 3-wire operation (supply, DP, GND)
- 15~32 V DC power supply
- Unit of measurement : Pa, mmWC (for display)
- High accuracy with stable DP sensor element
- Auto-zero adjustment with pushbutton switch

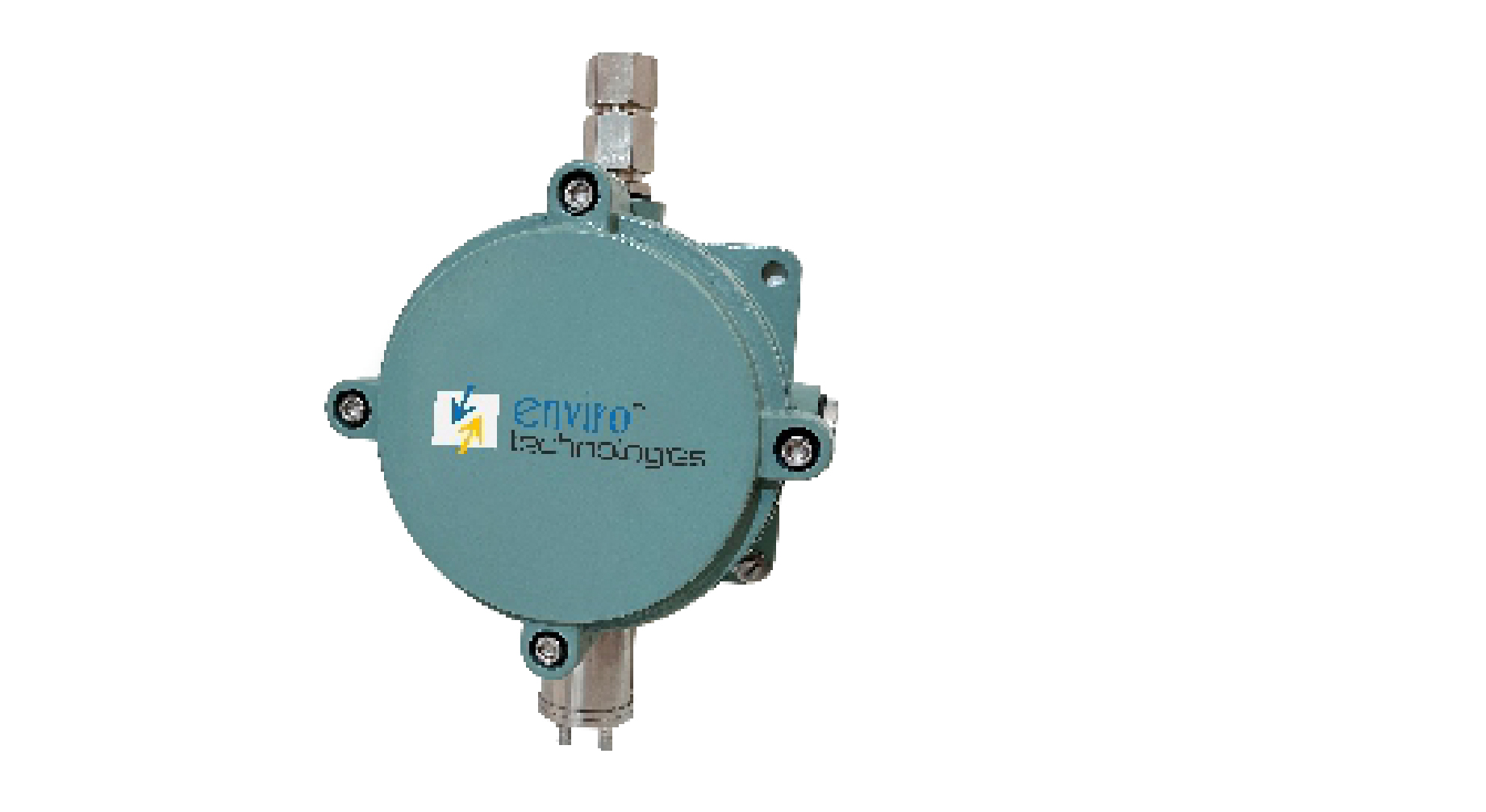

- Available in FLP variant
|
Parameter |
Description |
|---|---|
|
Differential Pressure |
±980 Pascal (Other range configuration available against order) |
|
Accuracy |
±1.5 % of full scale |
|
Unit of Measurement |
Pa, mmWC, mbar, inWG, mmHg |
|
Display |
TFT Display and 7-segment display |
|
No. of outputs |
1 |
|
Output type |
4-20mA / 0-10Volts (user settable) |
|
Permissible load |
500Ω(max) @ 24 V DC(for mAmp output) 10KΩ(min) (For Volt output) |
|
Ambient, storage |
0 ~ + 70 °C |
|
Ambient, operation |
0 ~ + 50 °C (For with and without display) |
|
Relative humidity |
0 ~ 75% RH, non-condensing |
|
CONFIGURATION |
Through keys and Serial cable |
|
Enclosure |
ABS plastic |
|
Cable gland |
Pg9 & M20 (for flameproof) |
|
Dimensions |

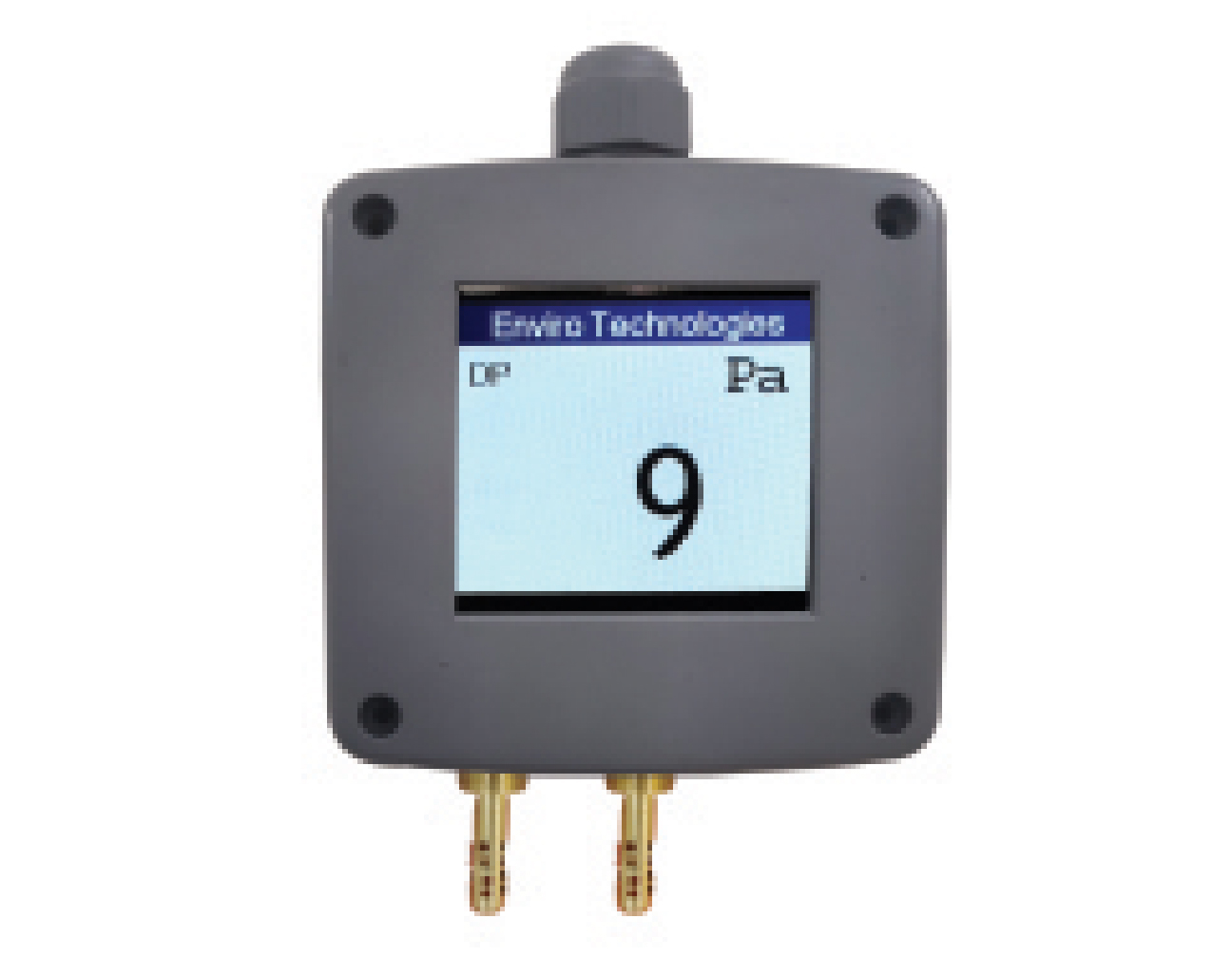

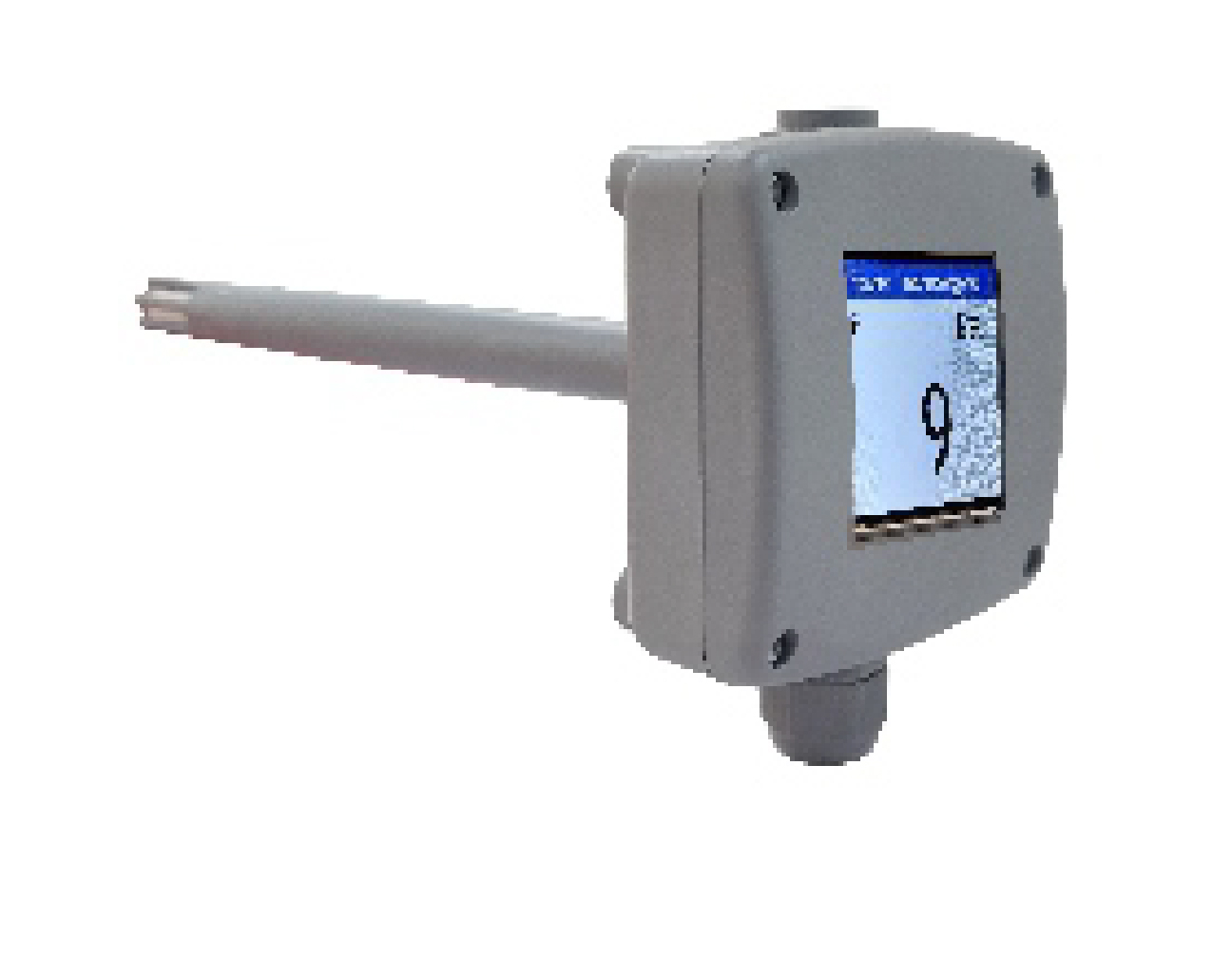

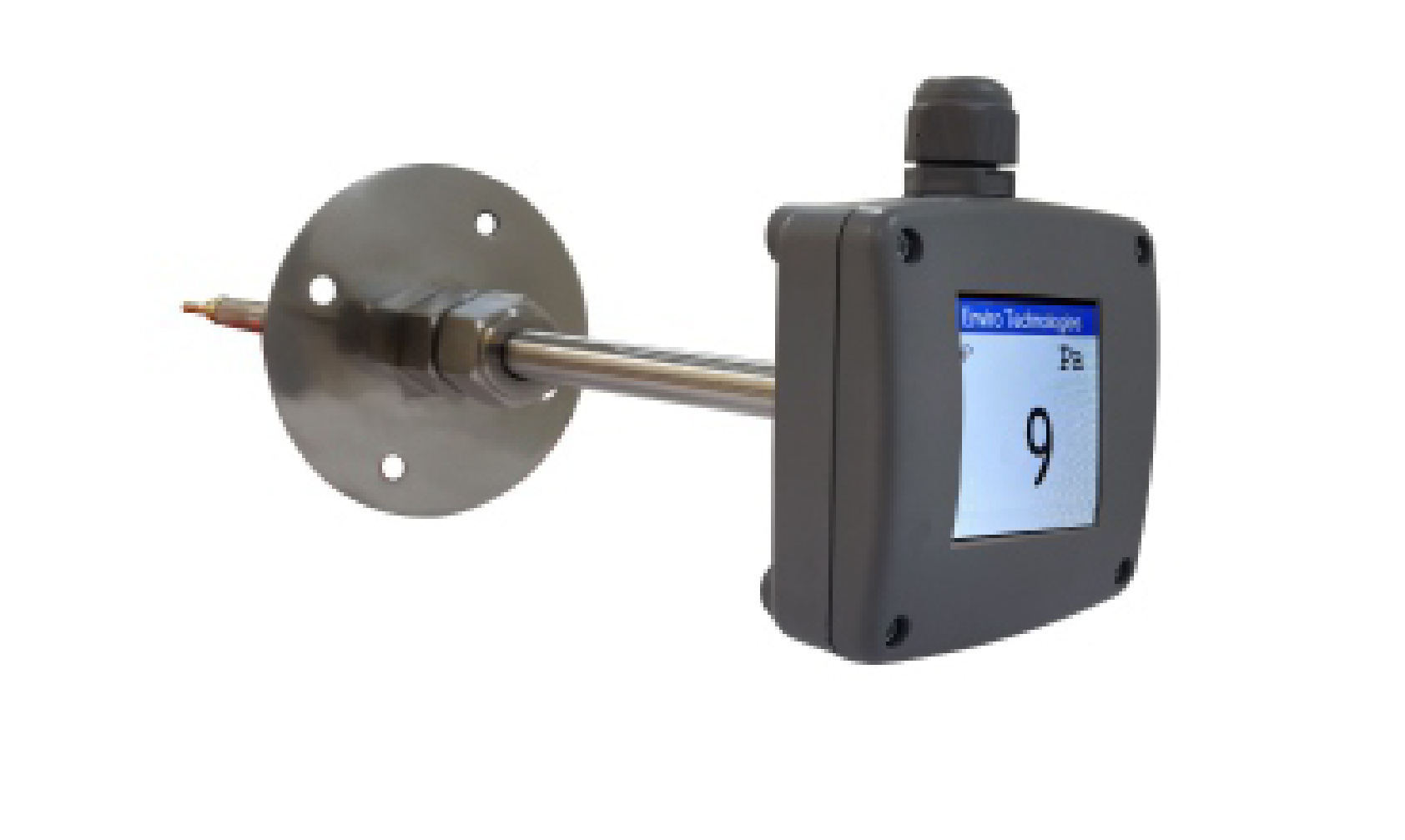

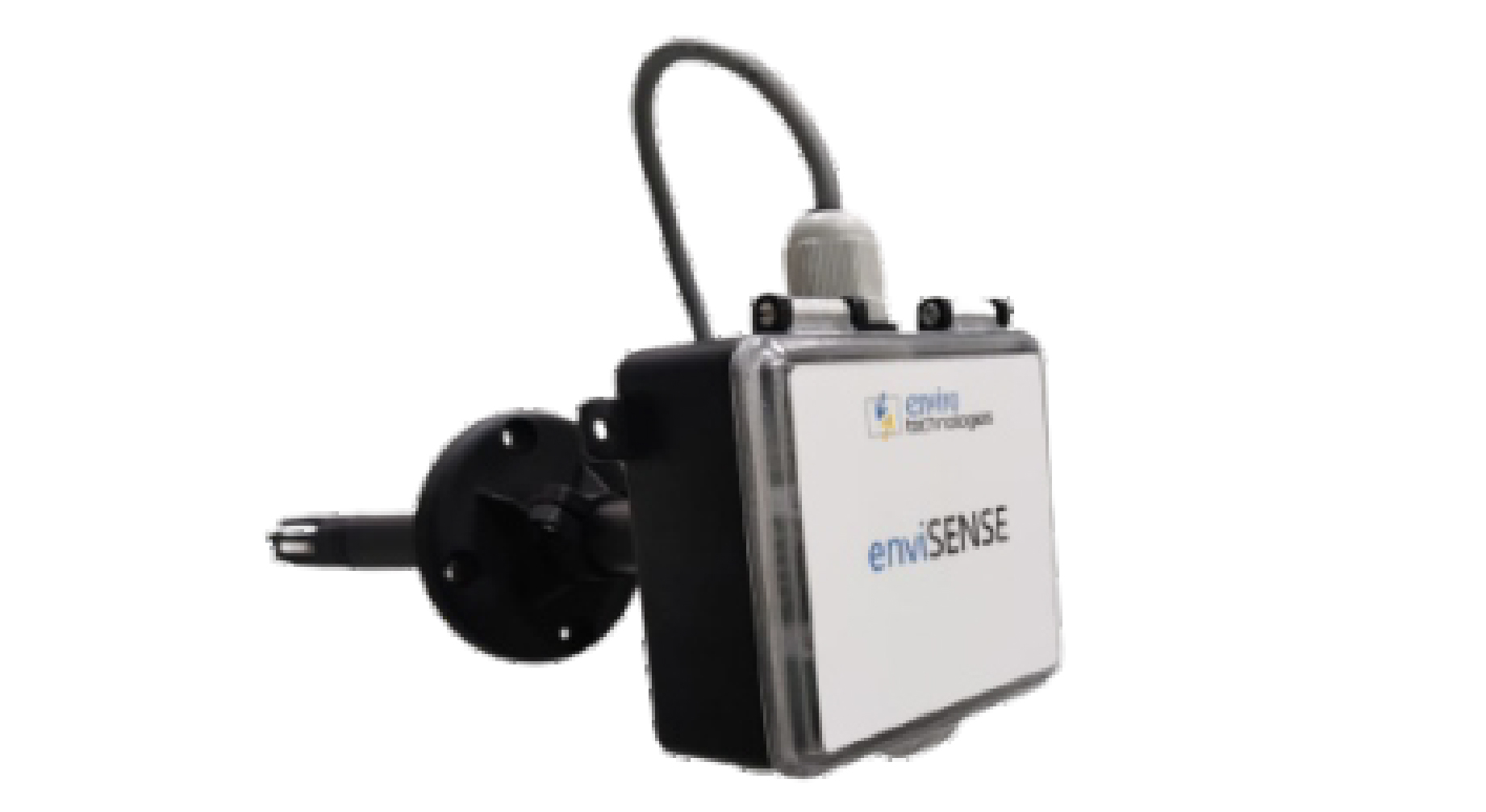

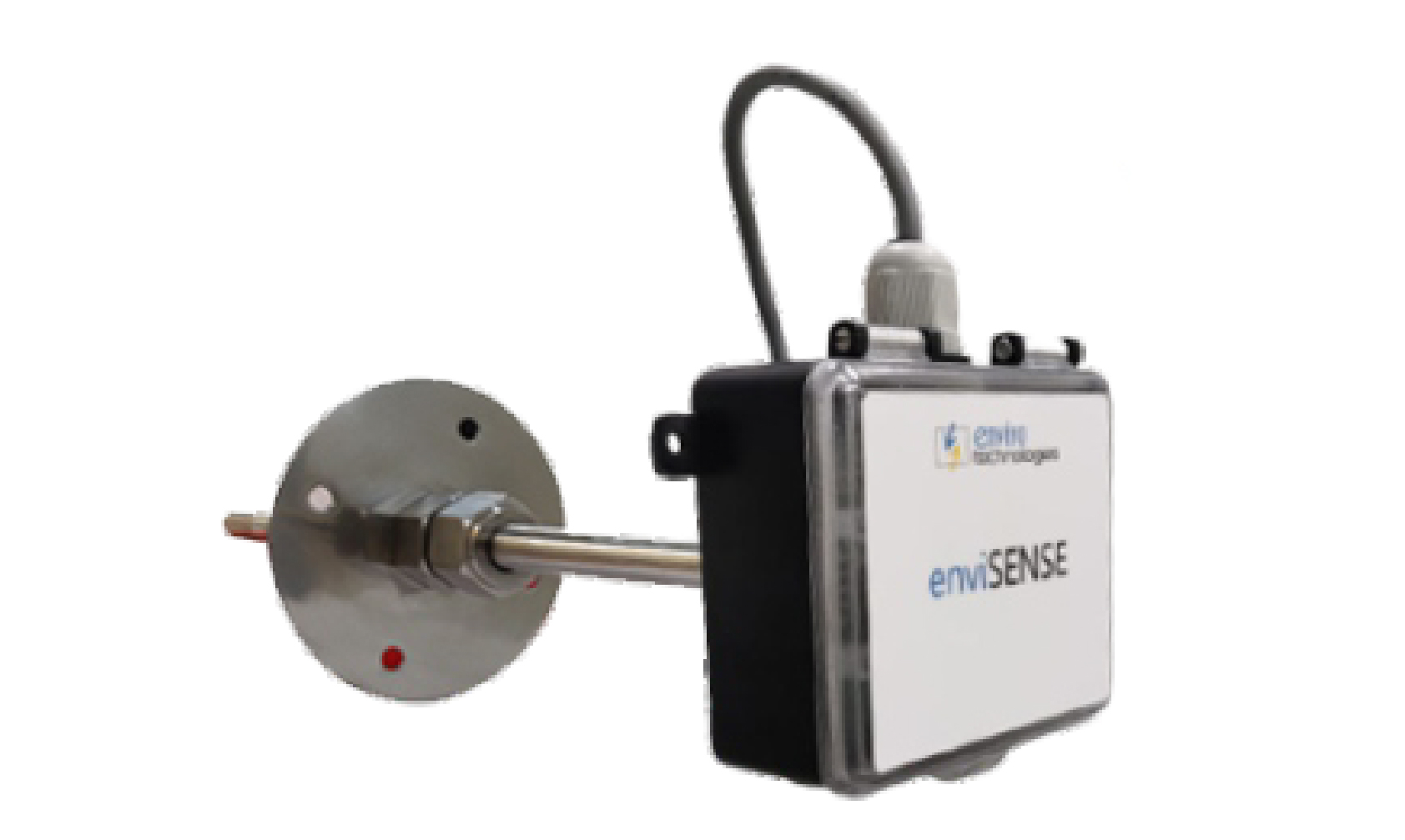

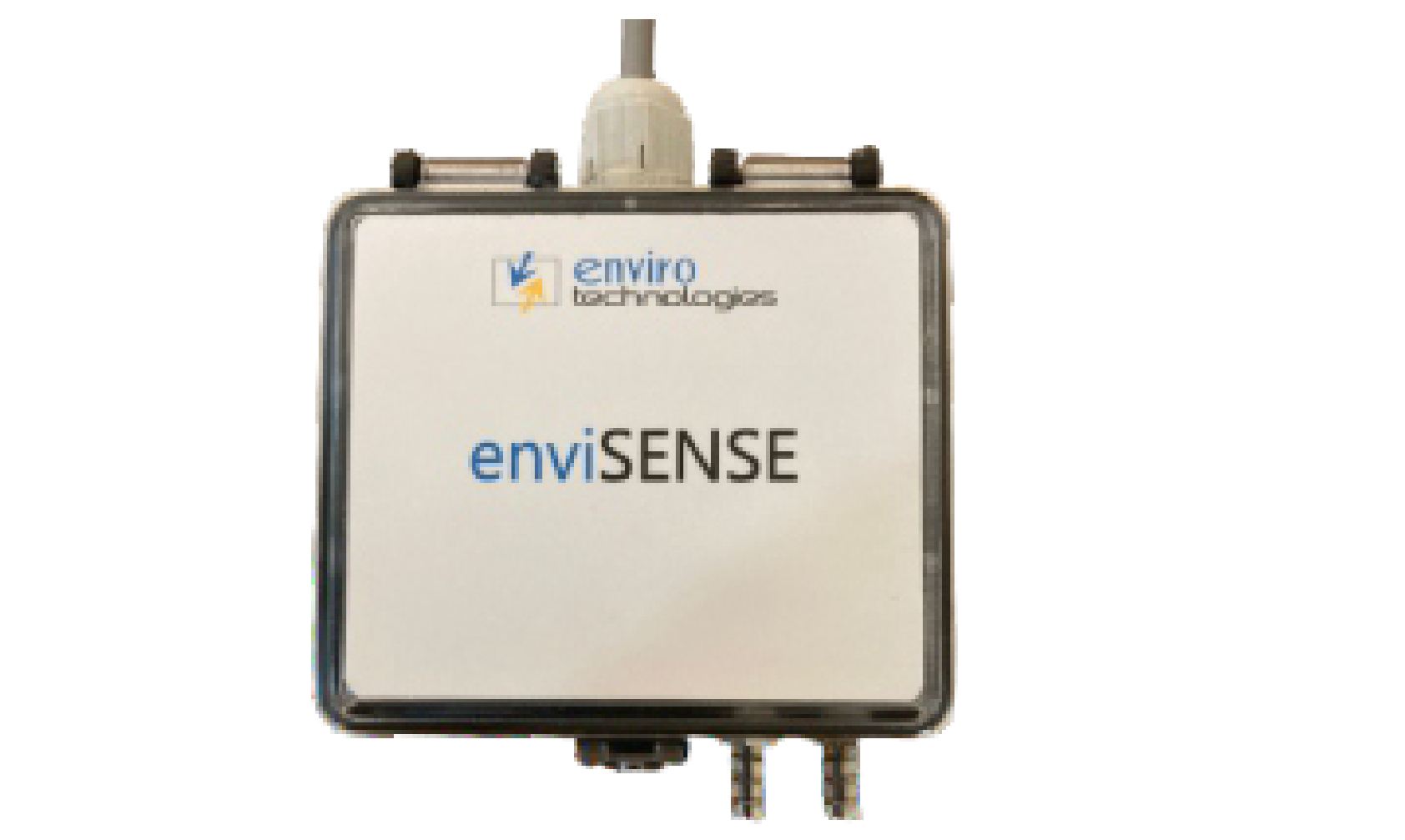

Wall Mount - 110mm X 40mm X 78mm Duct Mount - 102mm X 78mm X 210mm Probe Length - 192mm |
|
Protection |
Ip65 |
