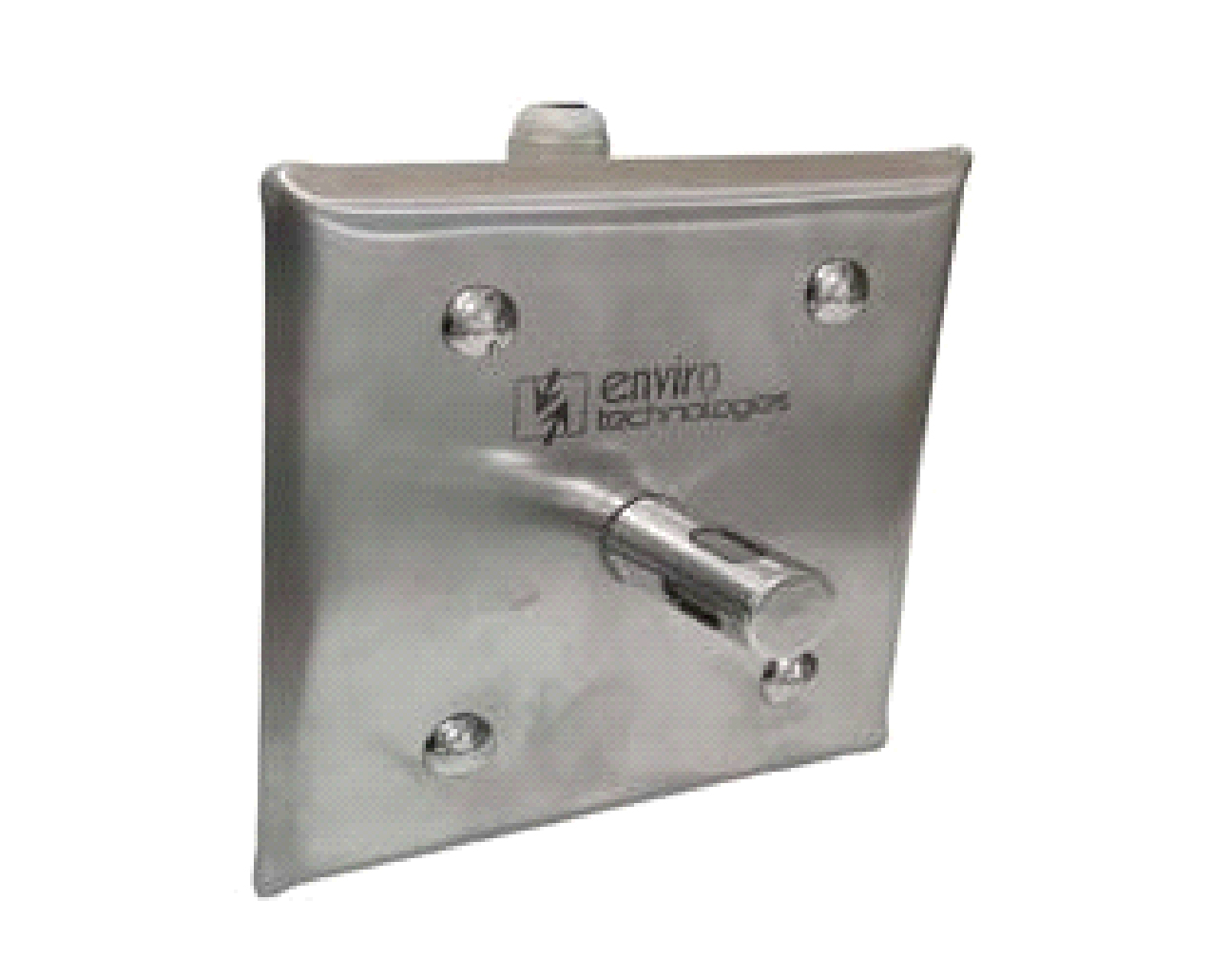

enviSENSE room mount & humidity sensors
EnviSENSE accurately measures temperature using band gap sensor technology. equipped with inbuilt digital temperature sensors available in Room mount versions.
CE Certified
BIS Certified
Make in India
- Long Term Stability for T+RH sensor
- Digital Sensor with capacitive sensor technology for Rh & band gap sensor technology, Factory Calibrated.
- High Performance digital sensors allows accurate measurement & fast Response of 10ms
- Ip62 Cabinet & IP54 Sensor
- Easy to Install
|
Parameter |
Description |
|---|---|
|
Input Power |
24vDC (18vDC to 30vDC) |
|
Analog Output |
4 to 20 mA, 0 to 10 V (Factory Default) |
|
Operating Temperature Range |
-30°C to 70°C (-20 to 158°F) |
|
Operating Humidity Range |
0 to 80% RH non-condensing |
|
Housing Material |
With front SS304 plate with Back MS powder Coated Box |
|
IP Rating |
IP 65 Cabinet & IP54 Sensor |
|
RH TRANSMITTER |
|
|
Sensor Type |
Capacitive Humidity sensor (Digital) |
|

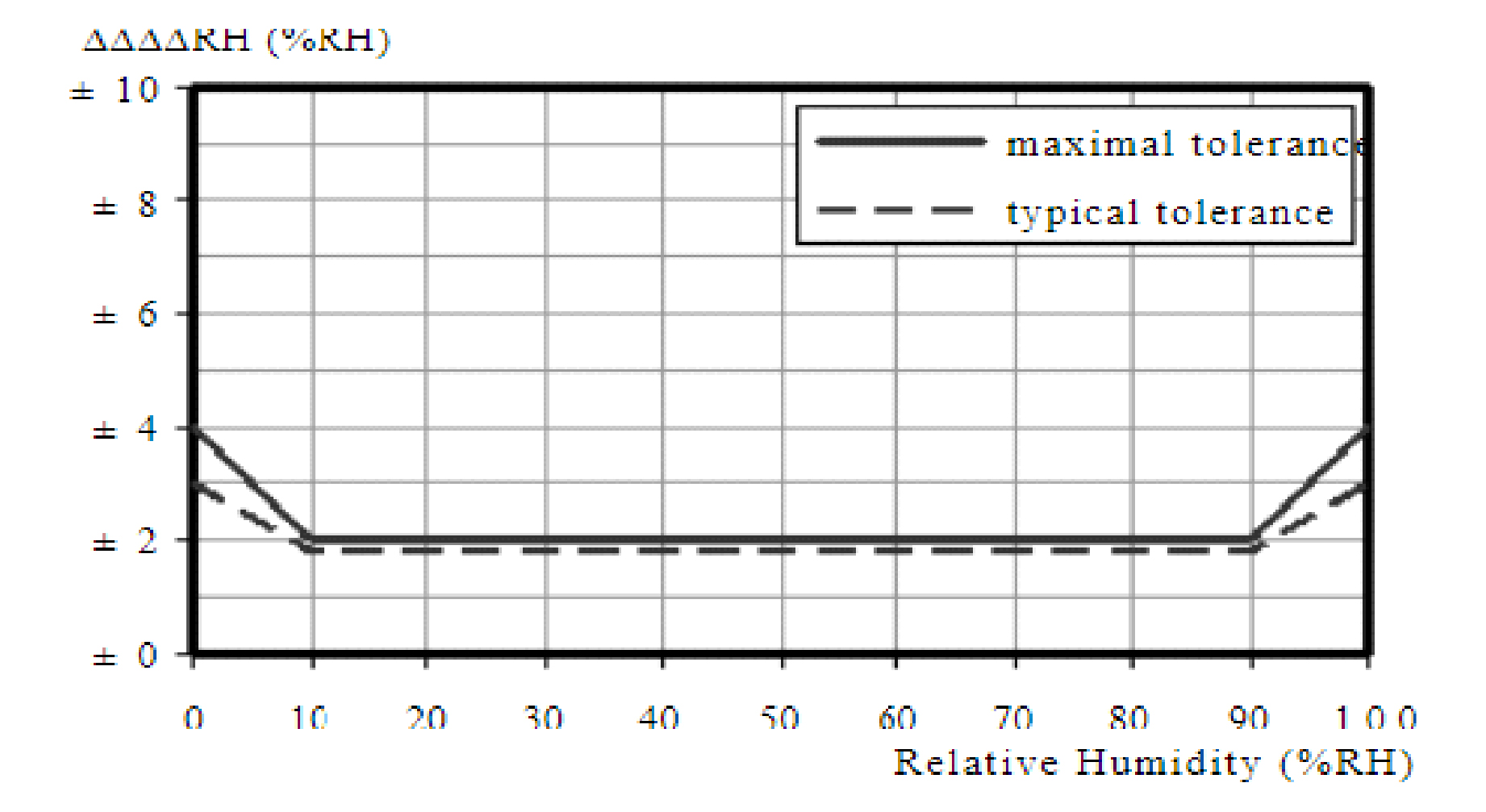

Accuracy |

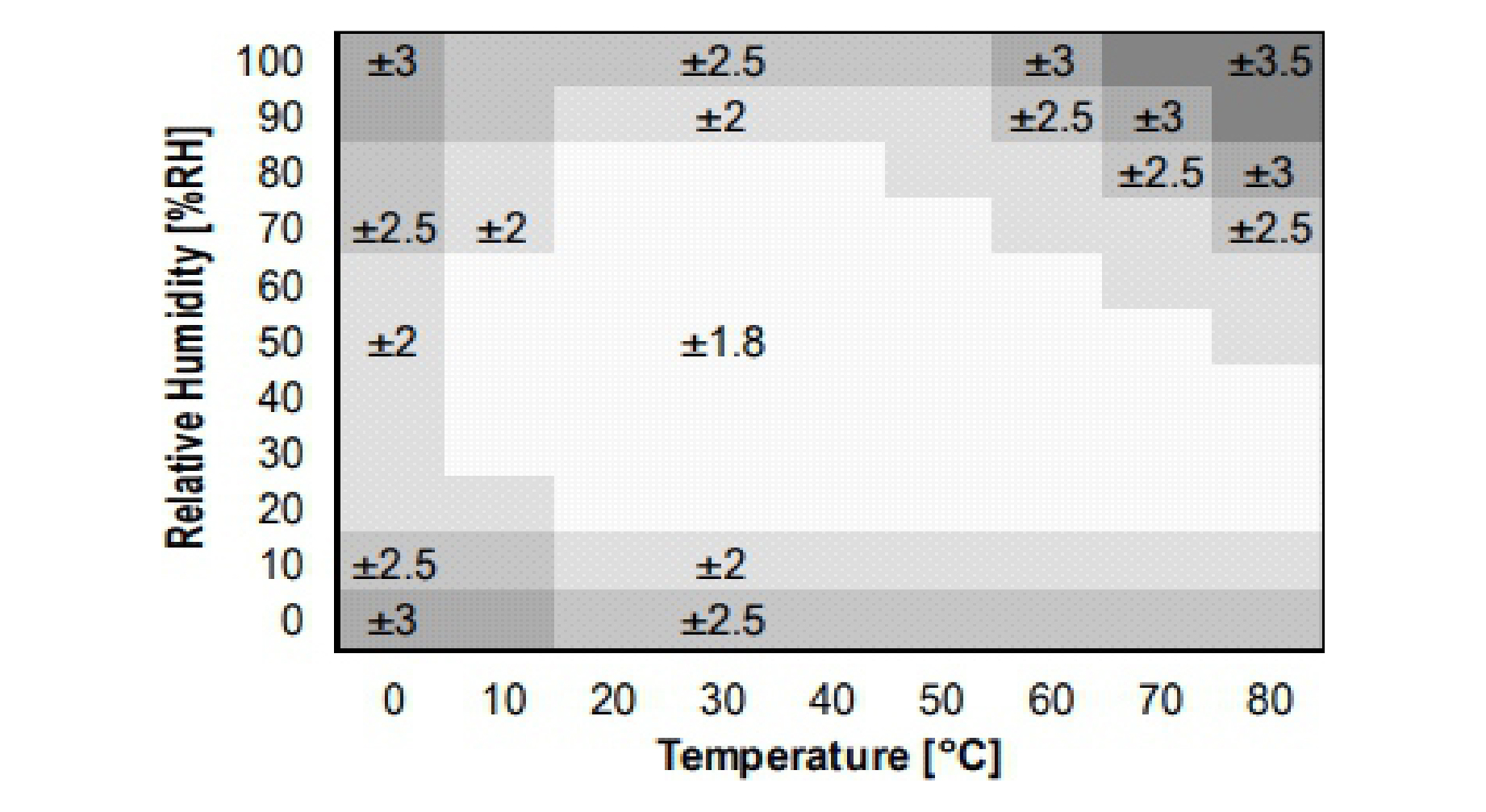

Option1: ±2% RH (For range of 10-90%RH) |
|
Hysteresis |
1.5% typical |
|
Stability |
<+/-1% @ 20°C (68°F) annually |
|
Output Range |
0 to 100% RH |
|
Resolution |
0.1% RH |
|
TEMPERATURE TRANSMITTER |
|
|
Sensor Type |
Band Gap Temperature (Digital) |
|

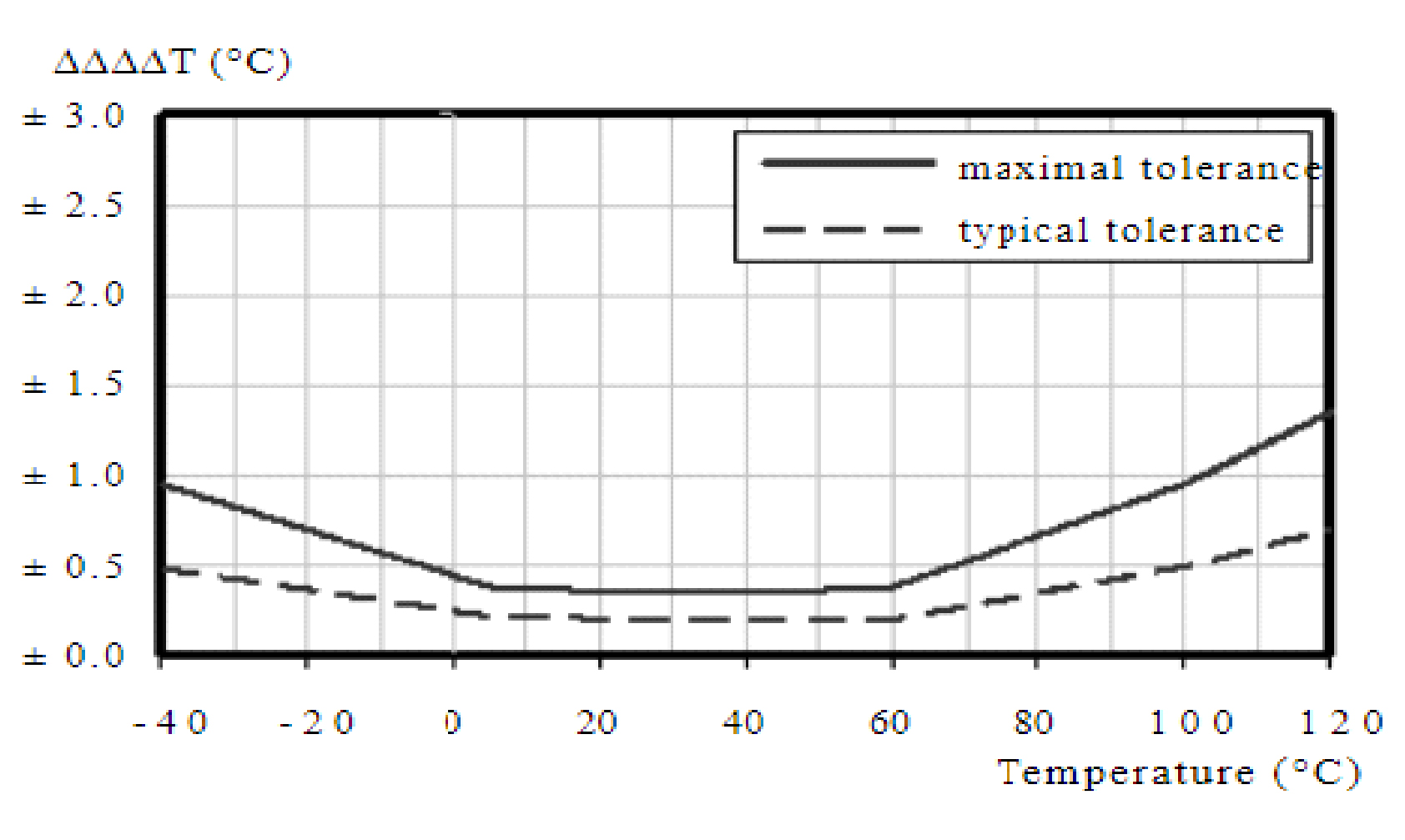

Accuracy |
Option1: ±0.2°C (For the range of 0°C to 60°C) |
|
Resolution |
0.1°C (0.1°F) |
|
Range |
0 to 70°C (32 to 158°F) |
|
WARRANTY |
|
|
Limited Warranty |
1 year |
|
COMPLIANCE INFORMATION |
|
|
Agency Approval |
CE Compliance Design |
