envisense Humidity & temprature transmitters
Enviro humidity/temperature transmitters are designed for use in environmental monitoring and control systems where high performance and stability are demanded.
CE Certified
BIS Certified
Make in India
- 2 analog outputs with 3-wire operation (VCC, T, RH, Gnd)
- 7 segment LCD for display RH & Temperature
- 15 to 32 VDC power supply
- Parameter configuration via PC configurator using USB to Serial Converter
- IP65 protection for industrial environments

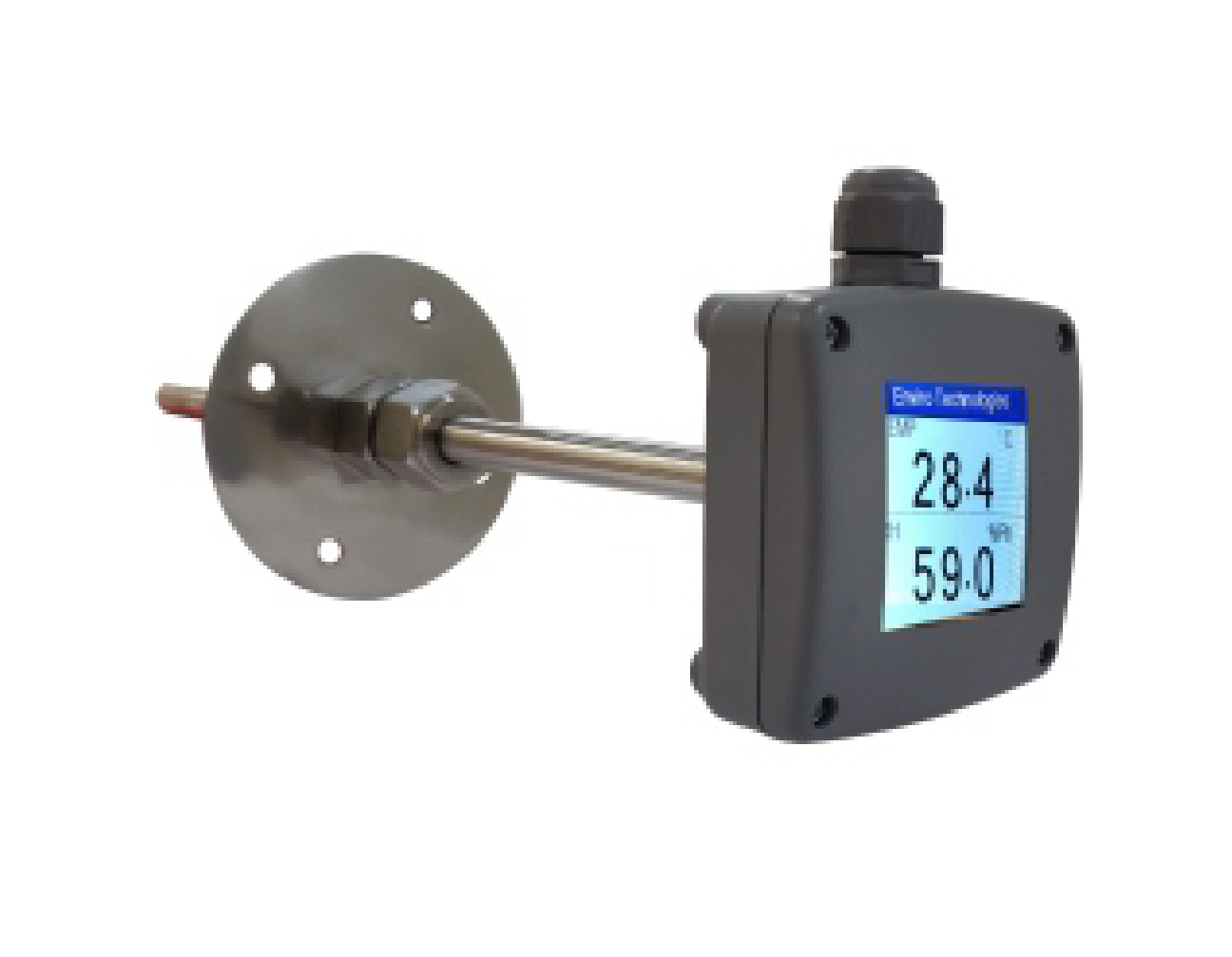

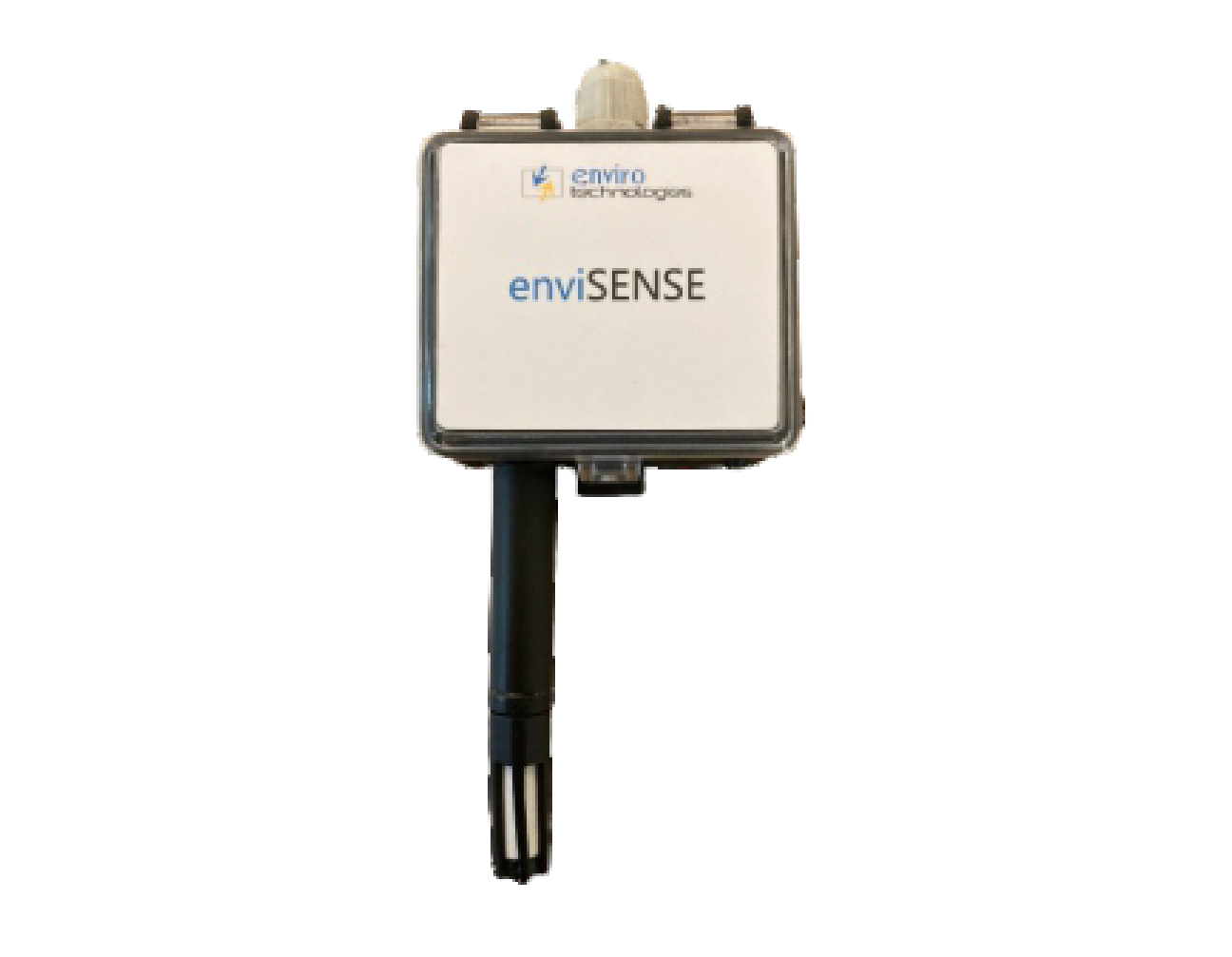

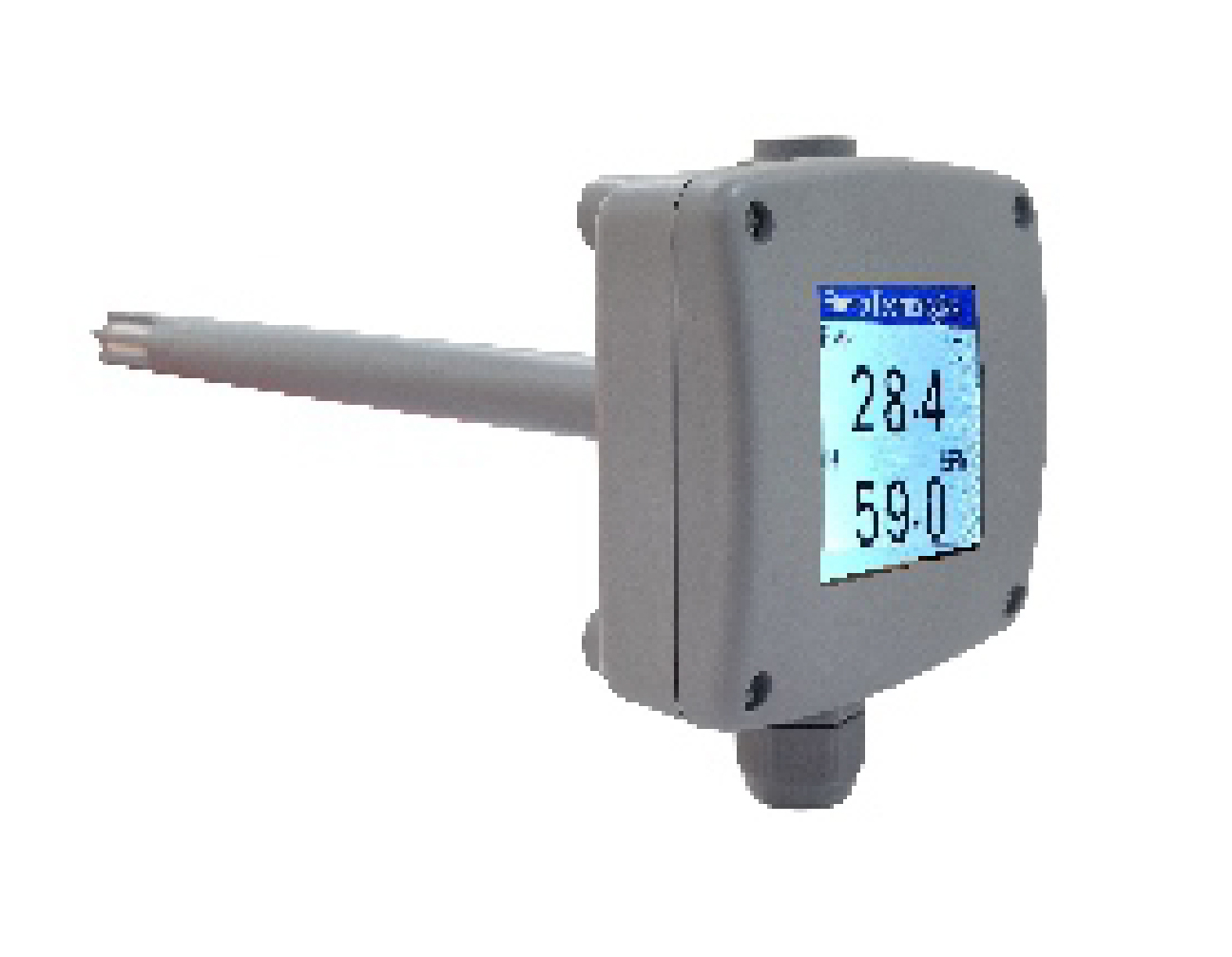

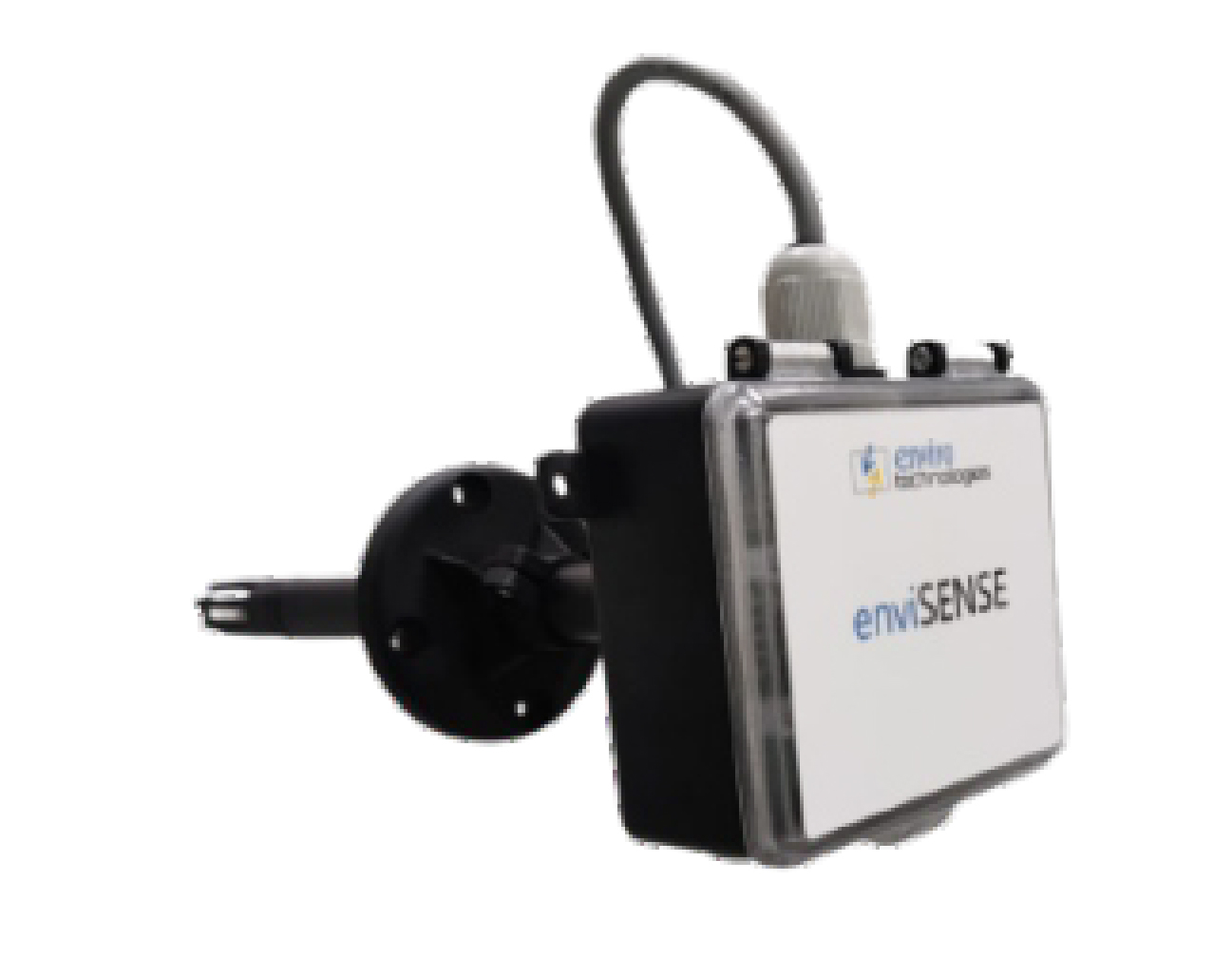

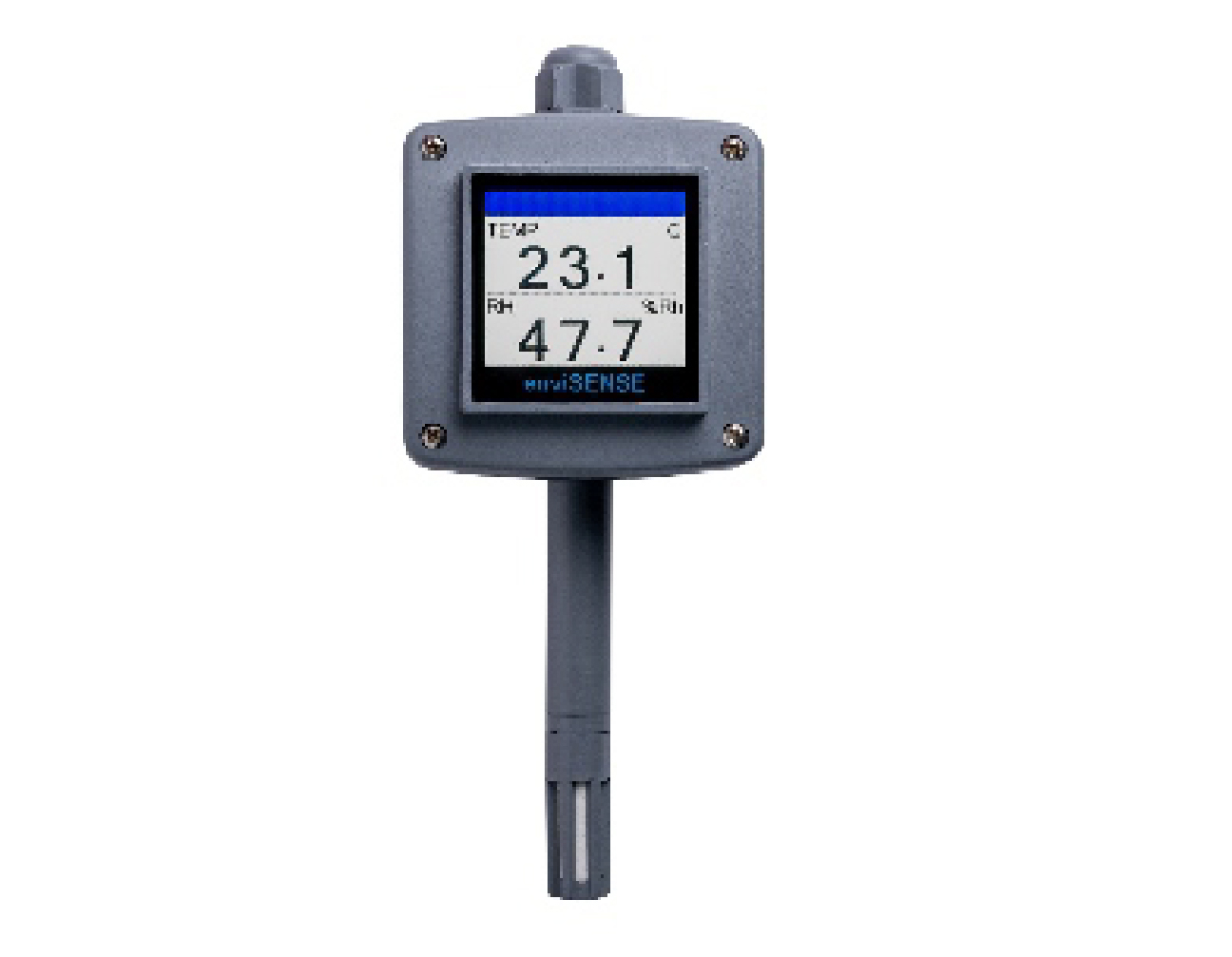

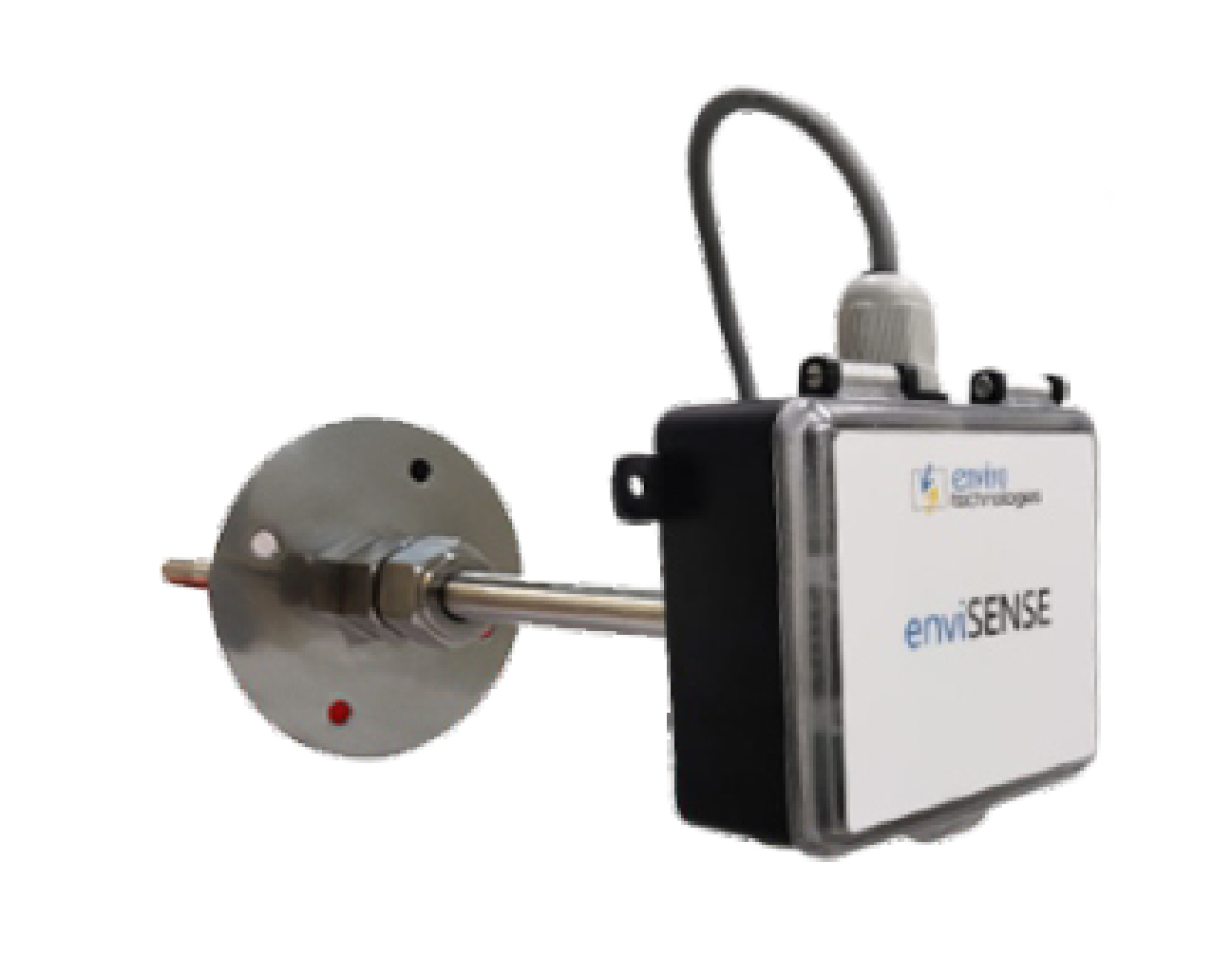

- Replaceable wall mount, duct mount sensor option available
- Long term stability of RH+T sensor
- Protected solder pads of sensor for anti-corrosion

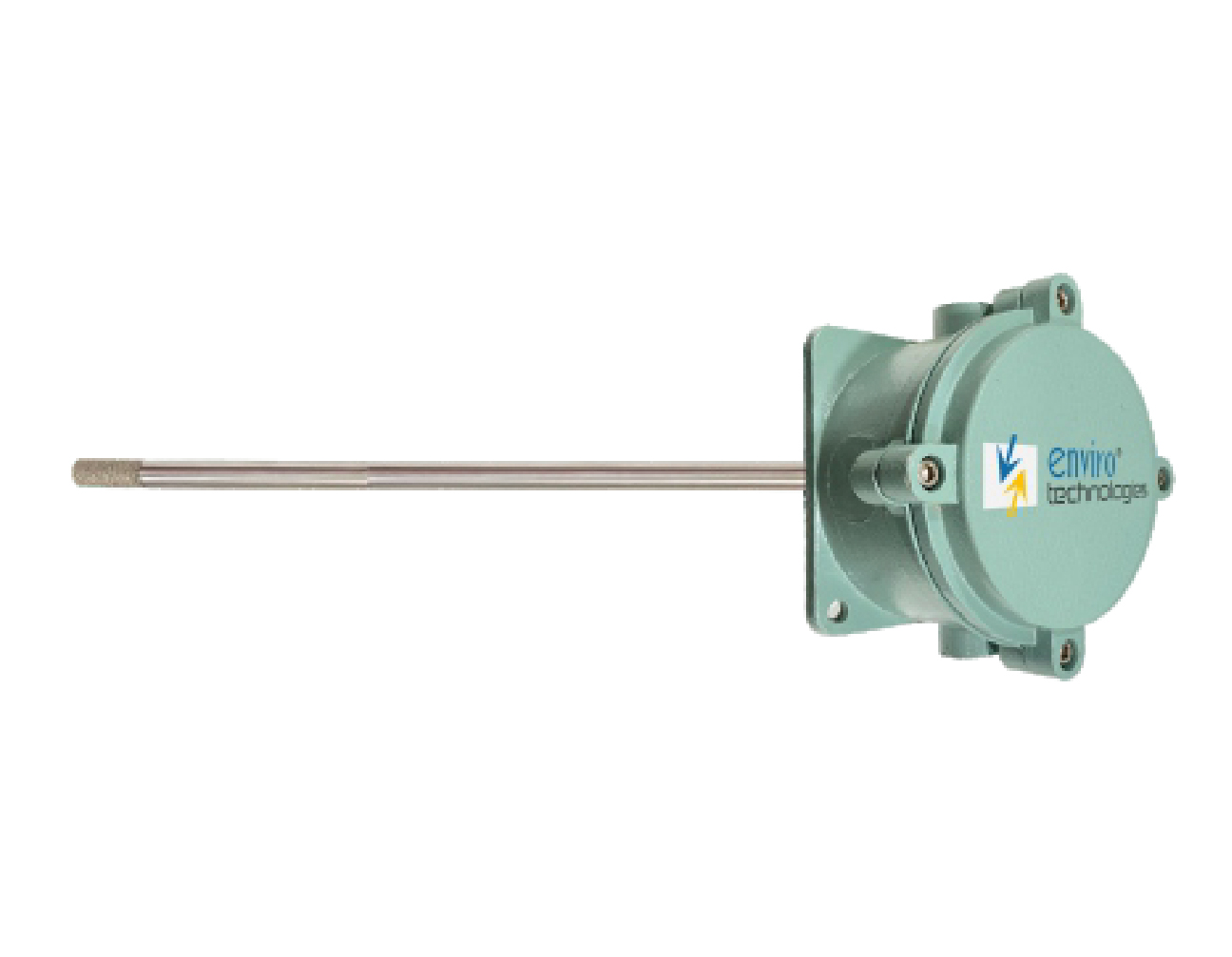

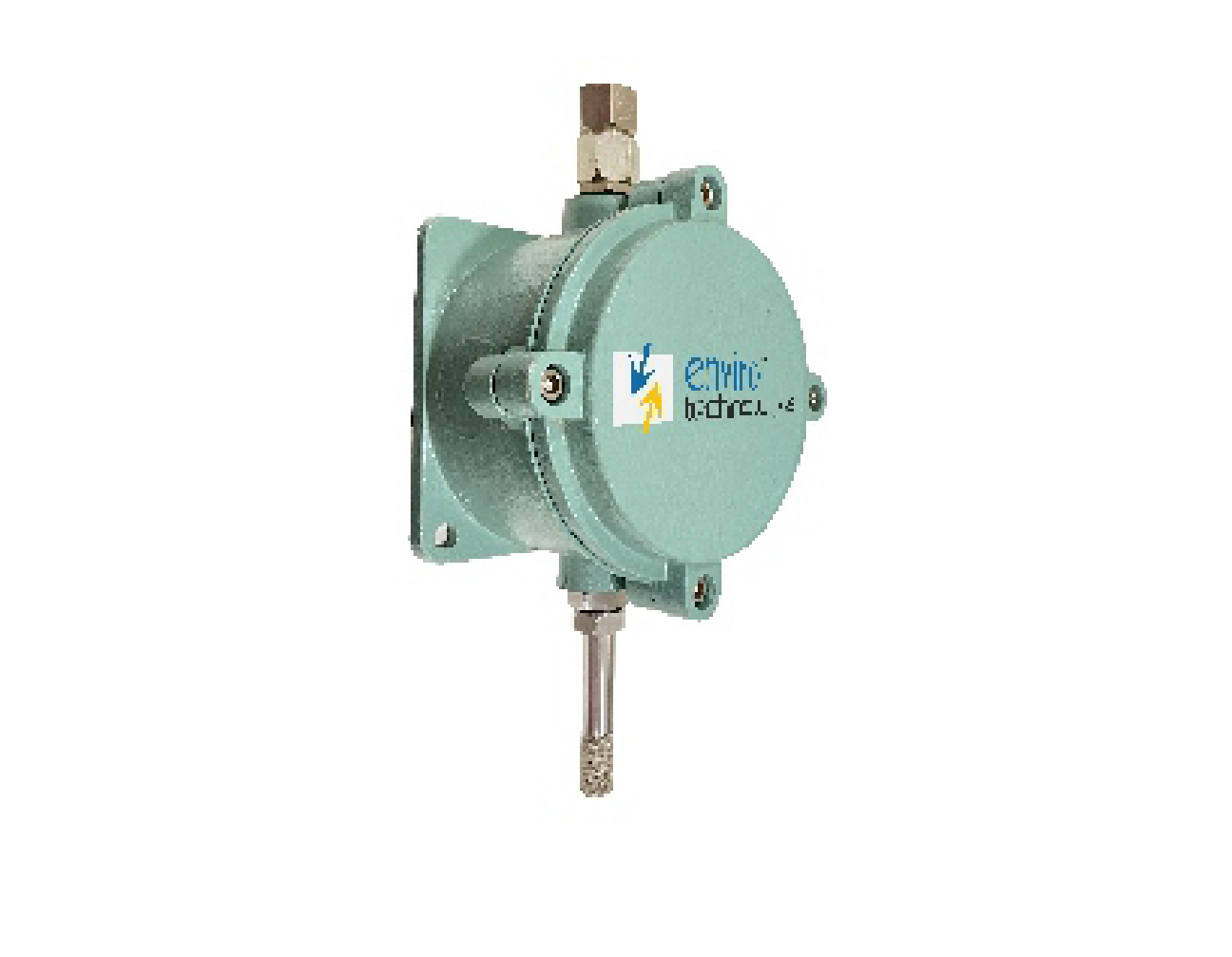

- Flameproof version available with enclosure made of Die cast Aluminum, Alloy LM6
|
Parameter |
Description |
|---|---|
|
Range |
Temperature :- 0°C to 70°C | Humidity :- 0% RH to 100% RH |
|
Channel Type |
Temperature /Humidity |
|
Accuracy |
|
|
Unit of Measurement |
Temperature :- °C, °F | Humidity :- %RH |
|
Sensor Type |
Band Gap Temperature | Capacitive Humidity sensor |
|
Display |
TFT | 7 Segmented Display |
|
No. of Analog outputs |
One or Two |
|
Output type |
4-20mA / 0-10Volts Output1 :- 3 wire, 4-20mA / 0-10Volts (T) |
|
Permissible load |
500 Ω (max) @ 24 V DC (for mA output) 10K Ω (min) (For Volt output) |
|
Ambient, storage |
0 ~ +70 °C |
|
Ambient, operation |
0 ~ +50 °C (For with display) | 0°C ~ +70 °C (For without display) |
|
Relative humidity |
0 ~ 75% RH, non-condensing |
|
Enclosure |
ABS plastic/Al Alloy (flameproof) |
|
Dimensions |
Wall: 185mm X 40mm X 78mm | Duct Mount: 102mm X 78mm X 232mm |
|
Protection |
Ip65 |
