Description

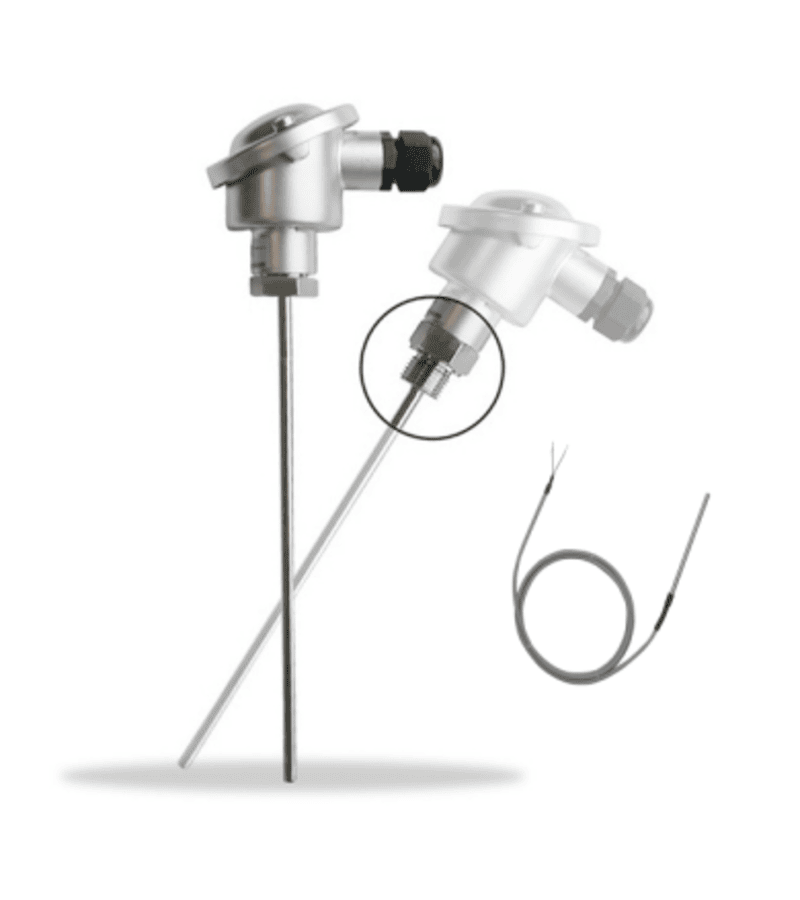

- Temperature sensor with stainless steel sheath, with or without compression fitting
- Measuring range from -80°C to +400°C (PT100 and Pt1000)
- Mounting of wires : single pair ( 3 or 6 wires)
Technical Information
|
Parameter |
Description |
|---|---|
|
Measuring Range |
from -80°C to +400°C (PT100 and Pt1000) |
|
Accuracy* |
Class “A”, Class “B” |
|
Mounting of wires |
single pair (3 or 6 wires) |
|
Storage temperature |
from -20°C to +80°C |
|
Sheath |
304, 316, 316 L stainless steel |
|
Compression fitting |
304, 316, 316 L stainless steel |
|
Thread |
with or without, 1/4”, 3/8”, 1/2”, BSP & NPT plug( fixed, Adjustable) (other thread on request) |
|
Electrical connection |
with or without terminal block transmitter 4/20mA as option |
|
Head |
Aluminium alloy, FLP Head |
|
Calibration Certificate |
Optional |
